G5
Residential Swing Gate Operators
UP to 600kg
The motor is 24V DC linear operator for swing gates
up to 6m(3m per leaf) and a combined gate weight of
300kgs(662 lbs). The fluid-grease lubrication system,
polyester powder-paint coating, self-lubricating worm
gear and built-in thermal protection system ensure quiet
operation and a long working life in all weather conditions,
without the need for periodic maintenance.Our units are
some of the most robust that you will find and are designed
to include accessories and safety features, often only available as
an added extra.
►230V/50HZ◄
►This version powered at 24V has been specially
designed for simpler and faster installation in
compliance with latest safety standards.
►Thanks to the obstruction sensing device, the operator
reverses motion and prevents damage to people and
vehicles in the event of contact.
►GATECH'S system of coded magnetic limit switches
makes it possible to reduce the complexity of wiring
the low-voltage motors: a single wire is carried to the
control panelinstead of the three or five normally required,
thereby increasing the simplicity and speed of installation.
►110V/60HZ◄
►This version powered at 24V has been specially
designed for simpler and faster installation in compliance
with latest safety standards.
►Thanks to the obstruction sensing device, the operator
reverses motion and prevents damage to people and
vehicles in the event of contact.
►GATECH'S system of coded magnetic limit switches
makes it possible to reduce the complexity of wiring
the low-voltage motors: a single wire is carried to the
control panelinstead of the three or five normally required,
thereby increasing the simplicity and speed of installation.

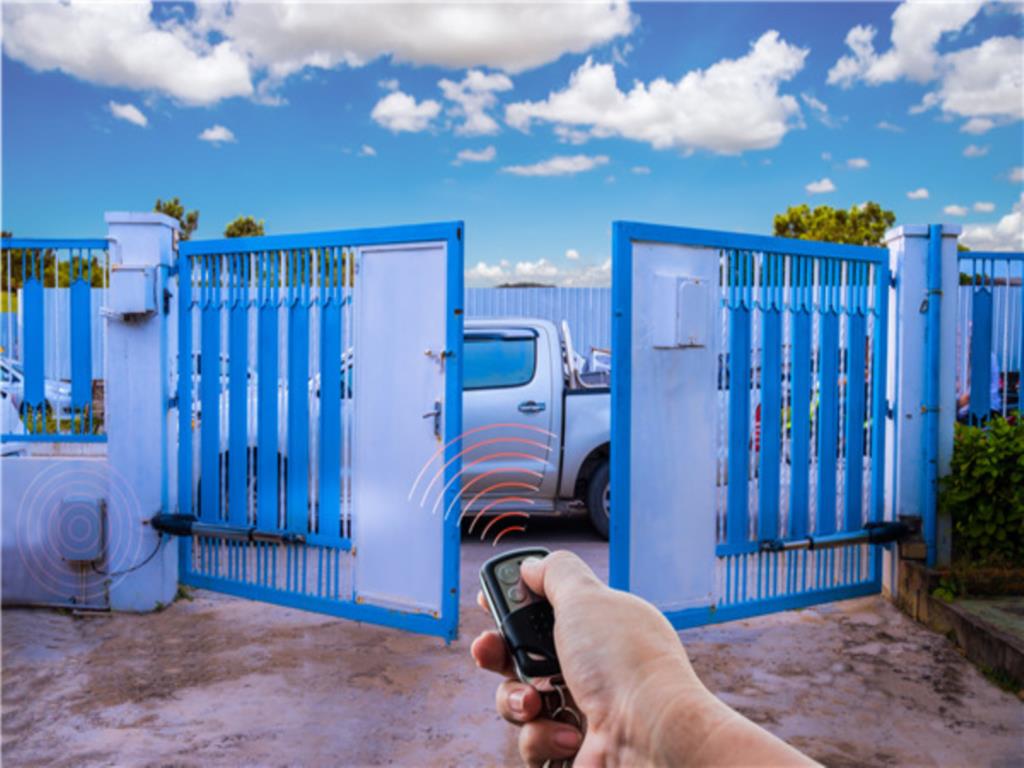

Automatic Swing gate opener 600kg
Output Power of motor | 12VDC/24VDC 45W |
Rotational speed | 3200RPM |
Rod’s running speed | 1.6cm/s |
Rod’s max travel | 300mm 400mm 500mm |
Max leaf length | 3m×2 |
Max single-leaf weight | 300kg |
Environment temperature | -20℃～+55℃ |
Continual run time | 5min |
Protection class | IP54 |
Gate operators accessories

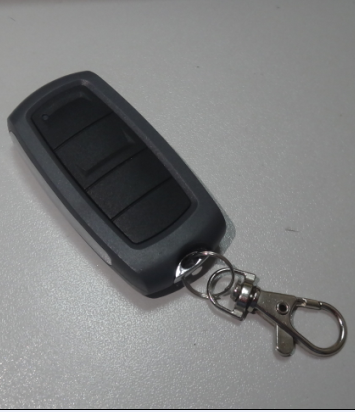

Photocell Remote controls
Flash lamp 24V/ 220V/ 12V

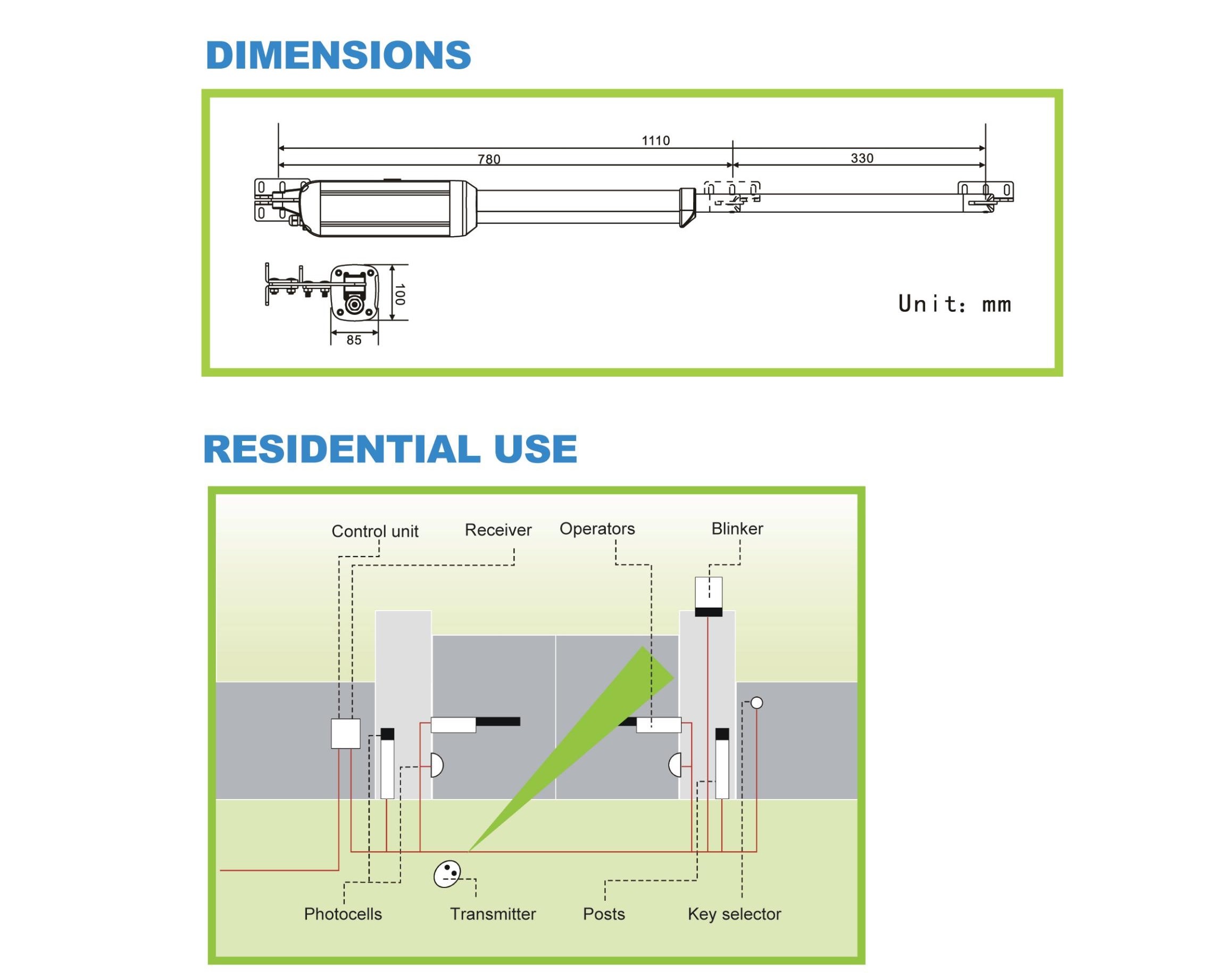

Typical installation
| 1 | ||
G5 Residential Swing Gate Operators
