G3
Residential Swing Gate Operators
Up to 600kg
The motor is 24V DC linear operator for swing gates up
to 6m(3m per leaf) and a combined gate weight of
300kgs(662 lbs). The fluid-grease lubrication system,
polyester powder-paint coating, self-lubricating
worm gear and built in thermal protection system
ensure quiet operation and a long working life in
all weather conditions, without the need for
periodic maintenance.Our units are some of
the most robust that you will find and are designed to
include accessories and safety features, often only available as
an added extra.
►230V/50HZ◄
►Independent load sensing tolerance of each swing gate motor for increased safety

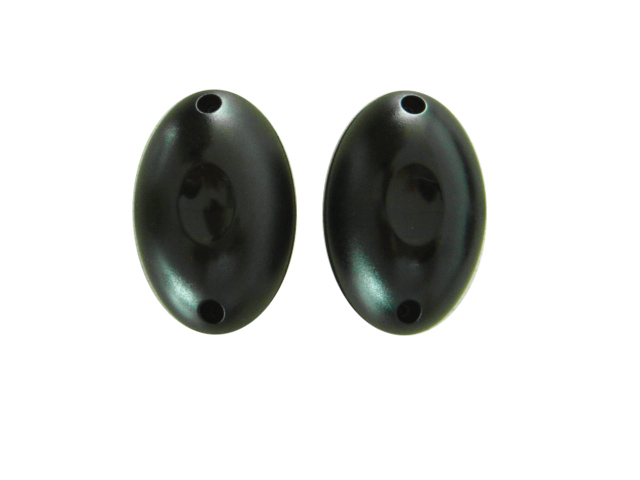

► Input for safety sensing devices such as beams
► Pedestrian opening of motor 1 only with independent pre-programmed auto-close

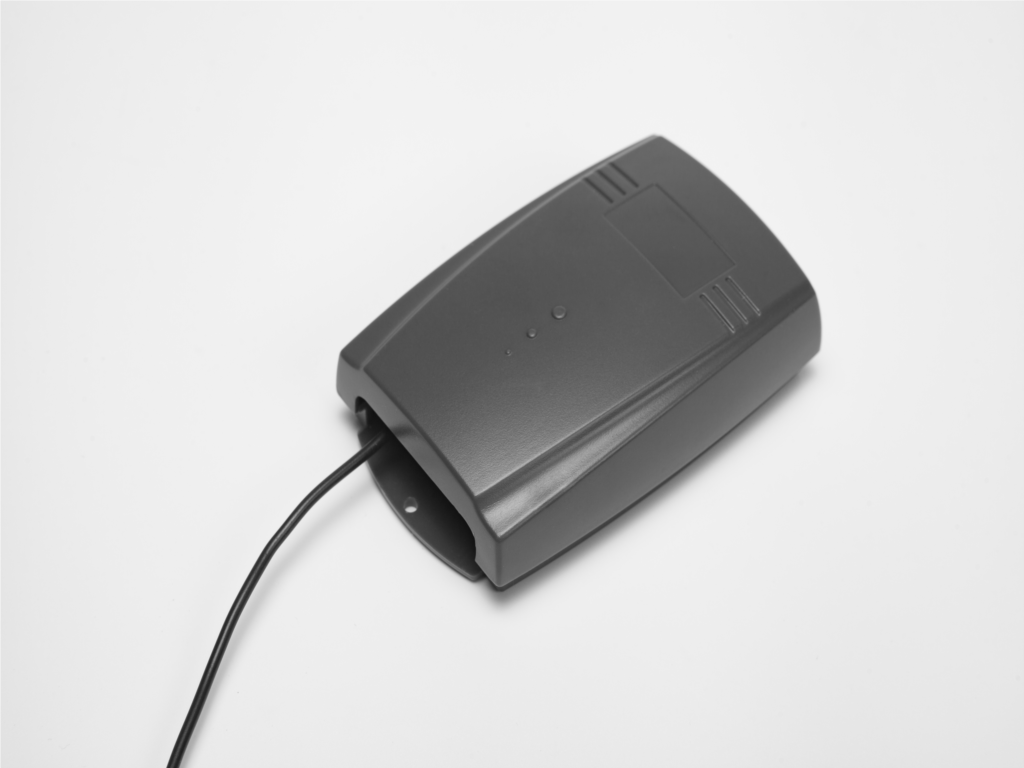

► Integrated onboard rolling code receiver for control of both the full opening and pedestrian functions
► Relay output for control of either courtesy lights or electric lock
►110V/60HZ◄
►This version powered at 24V has been specially designed for simpler
and faster installation in compliance with latest safety standards.
►Thanks to the obstruction sensing device, the operator reverses motion
and prevents damage to people and vehicles in the event of contact.
►Battery is charge via mains solar panel, without electric power input;
24 hour power-no power failure.
► GATECH'S system of coded magnetic limit switches makes it possible to
reduce the complexity of wiring the low-voltage motors:
► a single wire is carried to the control panelinstead of the three or five
normally required, thereby increasing the simplicity and speed of installation.
Automatic Swing gate opener 600kg
Output Power of motor | 12VDC/24VDC 45W |
Rotational speed | 3200RPM |
Rod’s running speed | 1.6cm/s |
Rod’s max travel | 300mm 400mm 500mm |
Max leaf length | 3m×2 |
Max single-leaf weight | 300kg |
Environment temperature | -20℃～+55℃ |
Continual run time | 5min |
Protection class | IP54 |

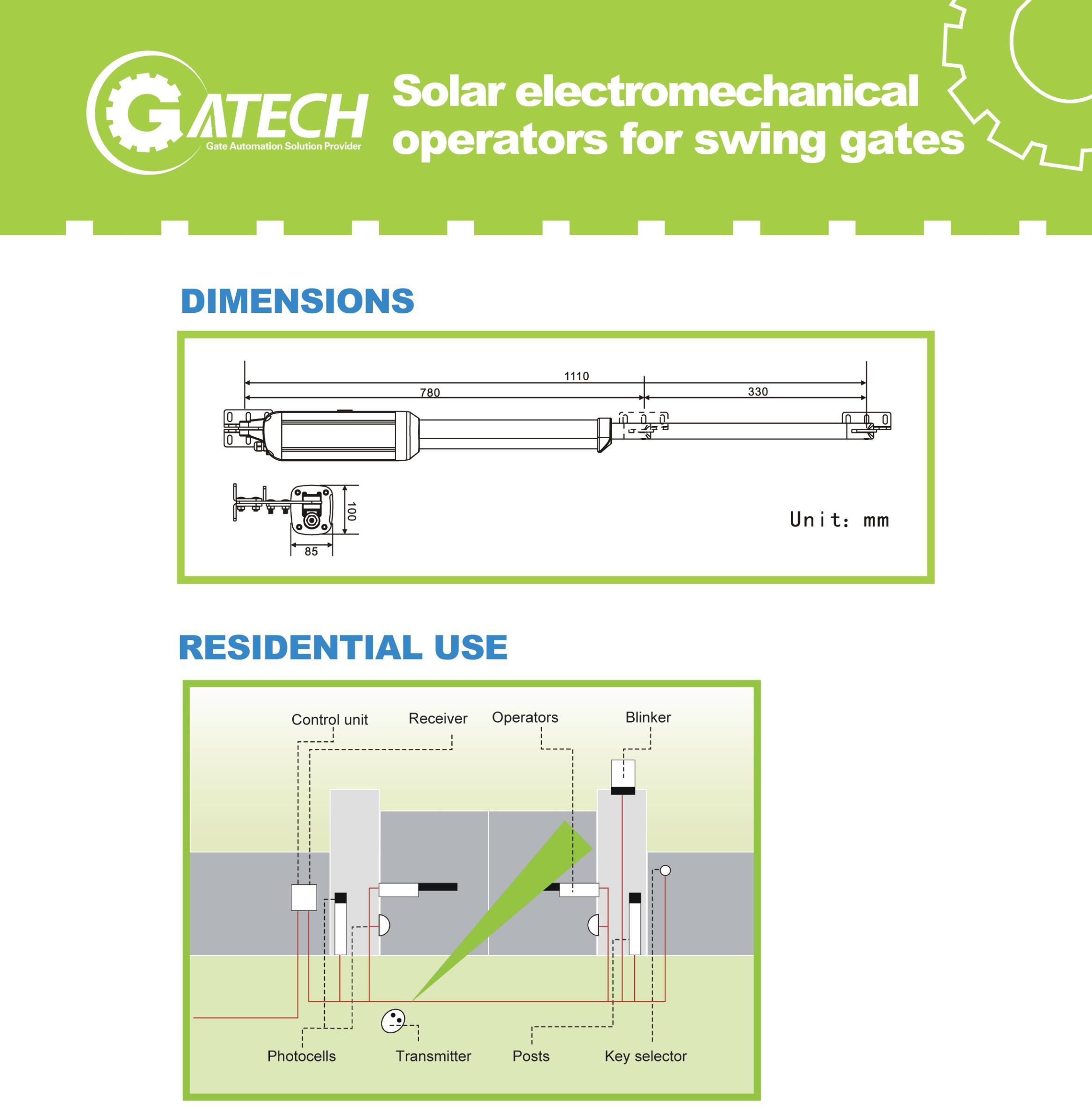

Typical installation
| 1 | ||
