G12

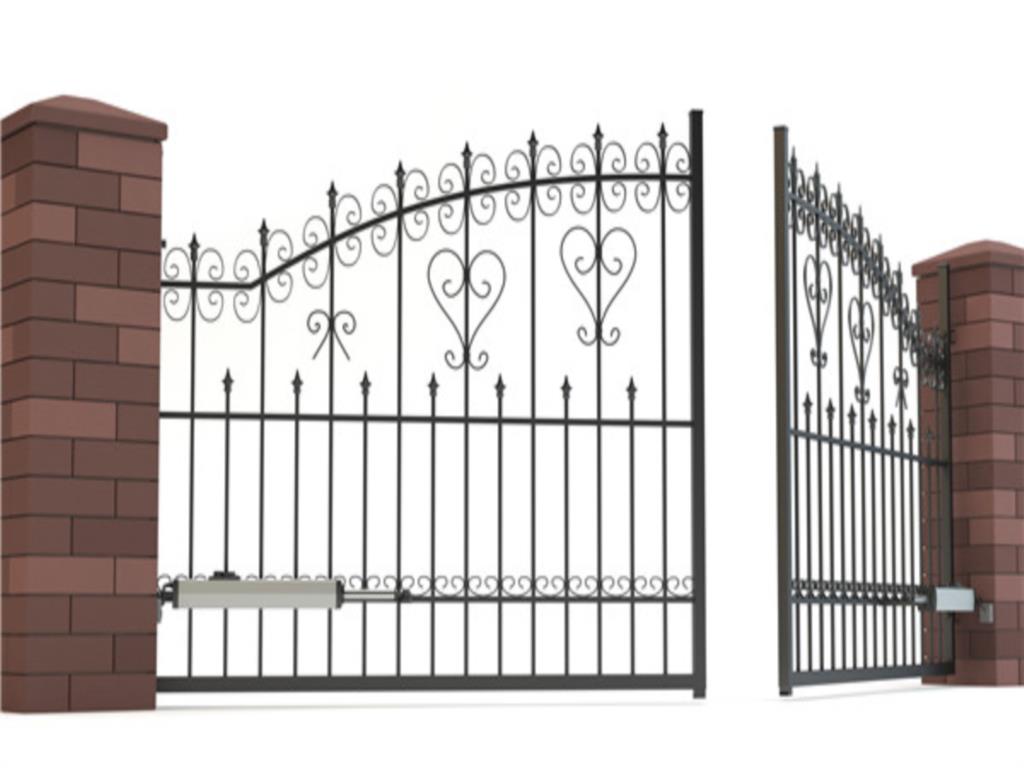

Residential Swing Gate Operators
Up to 1200kg
The motor is 24V DC linear operator for swing gates up to
6m(3m per leaf) and a combined gate weight of 600kgs(662 lbs).
The fluid-grease lubrication system, polyester
powder-paint coating, self-lubricating worm
gear and built in thermal protection system ensure
quiet operation and a long working life in all weather
conditions, without the need for periodic maintenance.
Our units are some of the most robust that
you will find and are designed to include accessories
and safety features, often only available as an added extra.
►230V/50HZ◄
►This version powered at 24V has been specially designed for simpler and faster
installation in compliance with latest safety standards.
►Thanks to the obstruction sensing device, the operator reverses motion and
prevents damage to people and vehicles in the event of contact.
►GATECH'S system of coded magnetic limit switches makes it possible to reduce
the complexity of wiring the low-voltage motors: a single wire is carried to the control
panelinstead of the three or five normally required, thereby increasing the simplicity
and speed of installation.
►110V/60HZ◄
►This version powered at 24V has been specially designed for simpler and
faster installation in compliance with latest safety standards.
►Thanks to the obstruction sensing device, the operator reverses motion
and prevents damage to people and vehicles in the event of contact.
►GATECH'S system of coded magnetic limit switches makes it possible to
reduce the complexity of wiring the low-voltage motors: a single wire is carried
to the control panelinstead of the three or five normally required, thereby increasing
the simplicity and speed of installation.
►110V/60HZ◄
Motor power | 110V AC |
Current | 0.55A |
Rotational Speed | 1400r/min |
Rod ′s running speed | 2.14r/min |
Max output torque | 375Nm |
Grate ′s opening angle | >90° |
Environment temperature | -20℃～55℃ |
Insulation class | B |
Protection class | IP54 |
Gate operators accessories

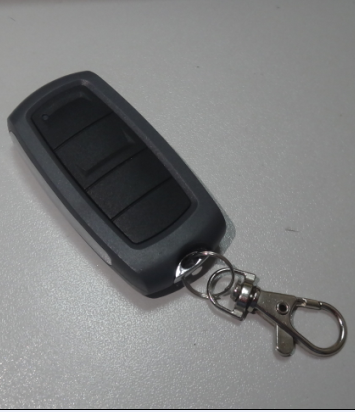

Photocell Remote controls

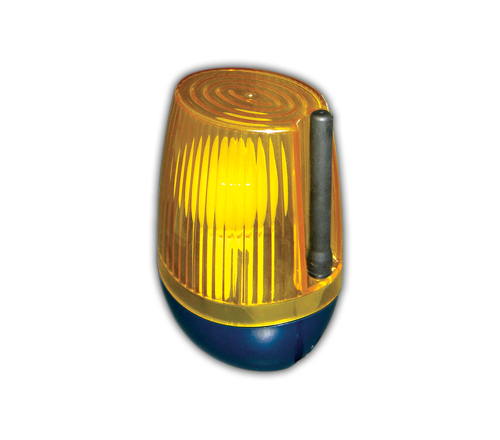

Flash lamp 220V 24V 12V

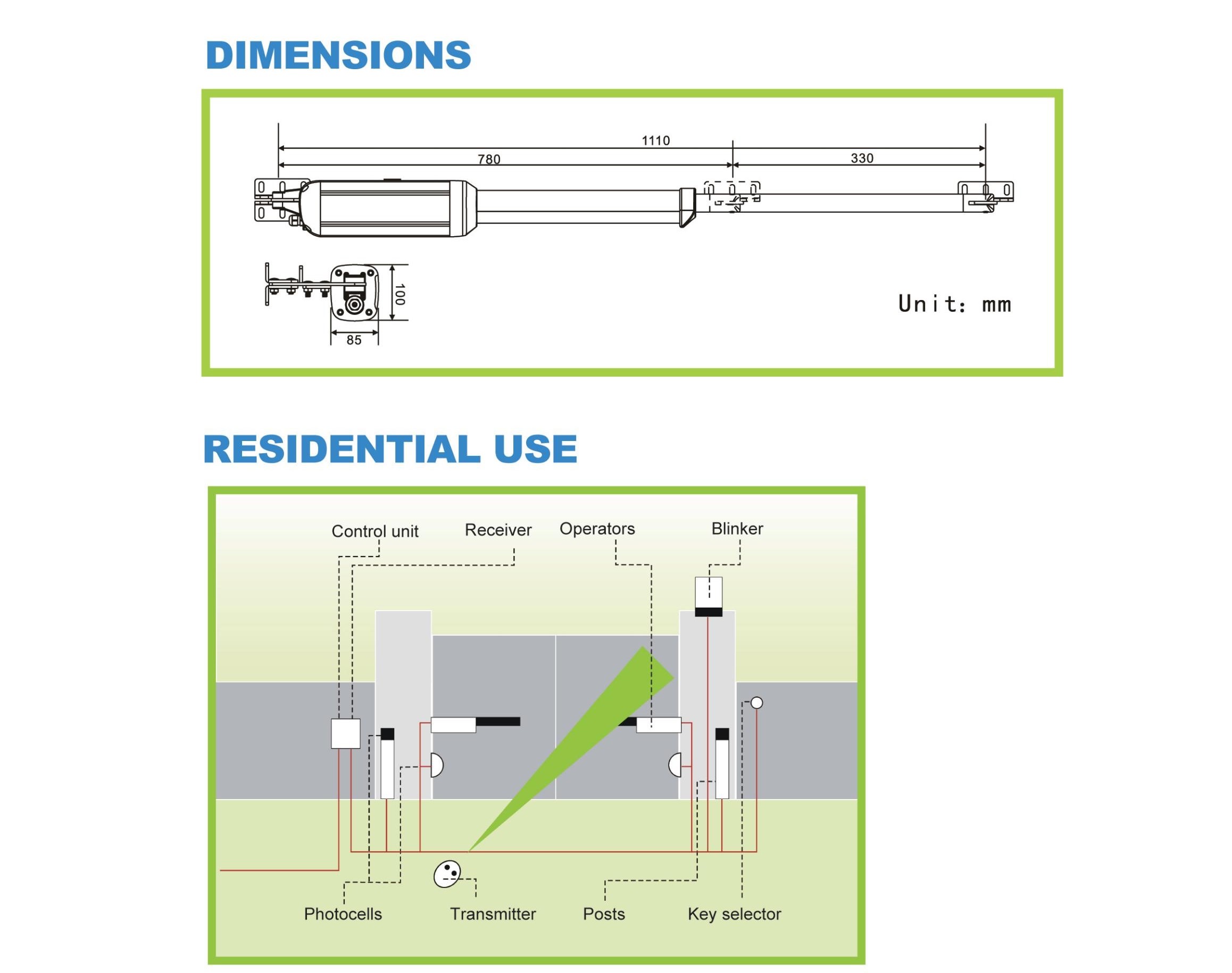

Typical installation
| 1 | ||
