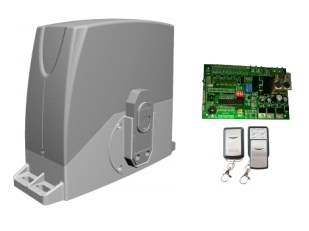

G24D
Residential sliding gate operators
Up to 400kg
GATECH operators supply Sliding gate motors up to 400Kg,
available in 24V. GATECH operators are provided with built-in

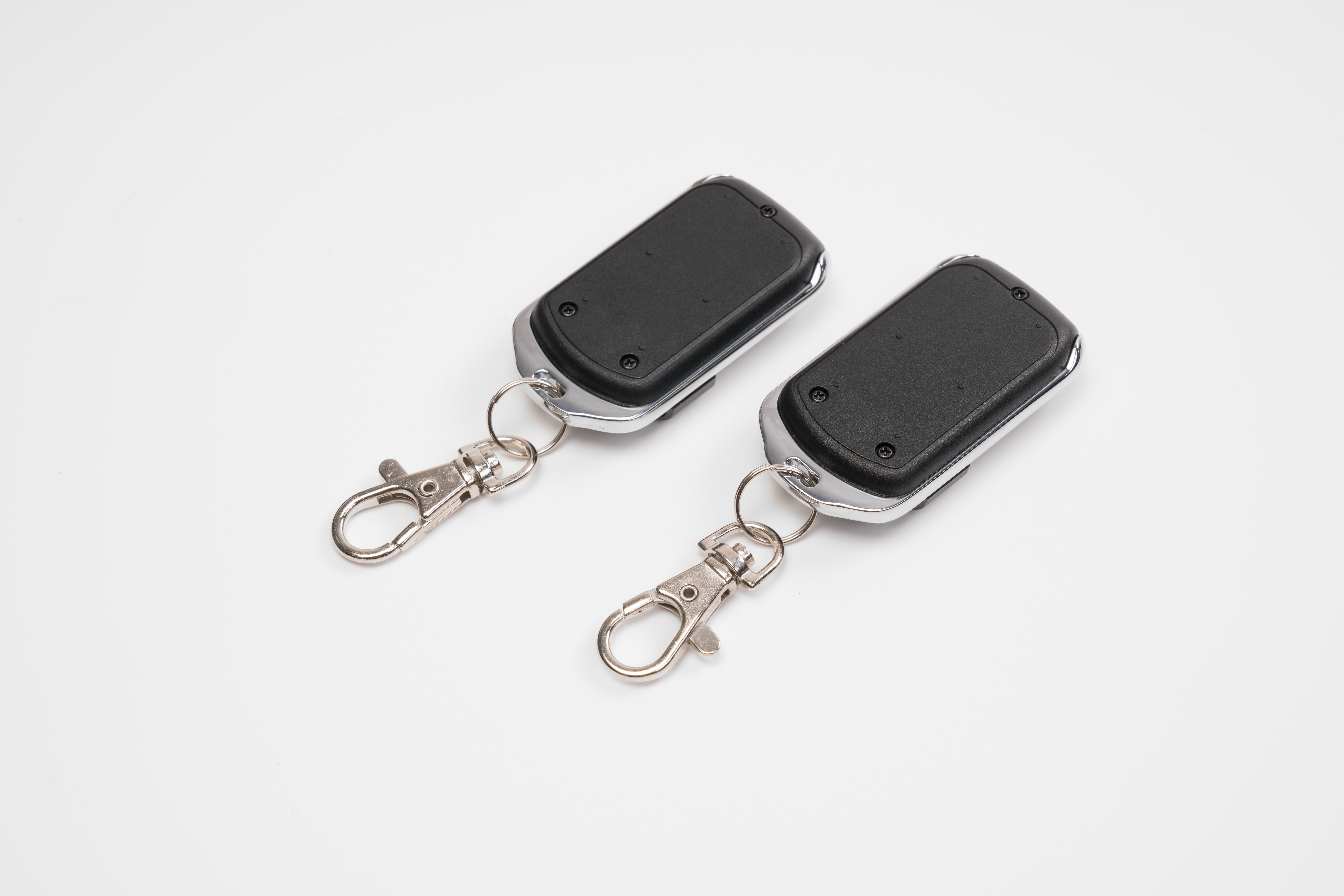

control panel with integrated 433 MHz and electromechanical
or magnetic limit switches. Reliability and safety characterize
to keep this operators superior quality.
►DC 24V◄
►24V single-phase with encoder for position management and obstacles detection
►Self-locking operators with electromechanical or magnetic limit switches
► Speed adjustment and slowdown in opening and closing
► Soft start and soft stop for all versions
►Internal fan to ensure an intensive use
110V/60HZ
►24V single-phase with encoder for position management and obstacles detection
►Self-locking operators with electromechanical or magnetic limit switches
► Speed adjustment and slowdown in opening and closing
► Soft start and soft stop for all versions
►Internal fan to ensure an intensive use
DC 24V Sliding gate motorS
Model No | G24D |
Power supply | 220V/110V |
Power of Motor | 24VDC 60W |
Motor rotational speed | 2200r/min |
Max weight of gate | 400kg |
Thermal protection on motor protection on motor winding | IP 55 |
Working environment | -10 ℃~55 ℃ |
►Gate operators accessories ◄
Photocell Transmitter

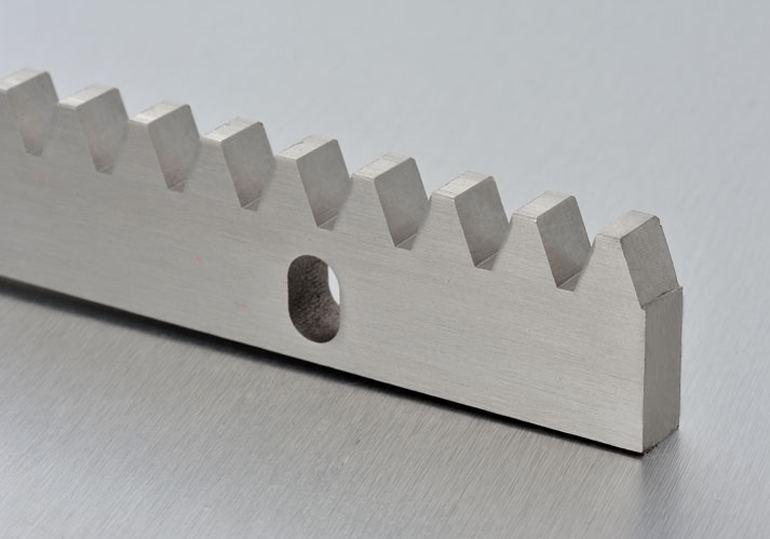

Flash lamp Gear rack 1000*30*8mm 1000*30*10mm/1000*30*12mm
1000*22*22mm 2000*22*22mm
Typical installation
