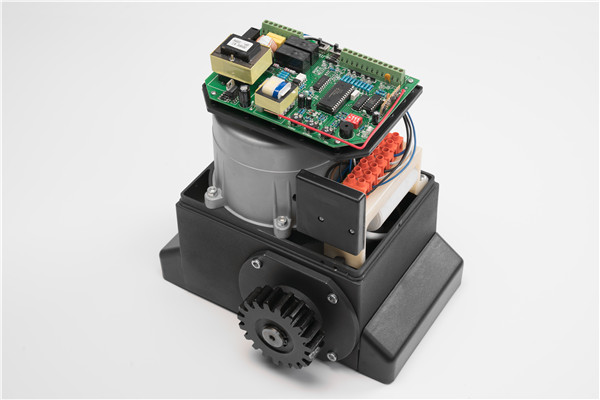

G10
Industrial sliding gate operators
Up to 1000kg
GATECH operators supply Sliding gate motors up to 1000Kg,
available in 230V 110V. GATECH operators are provided with
built-in control panel with integrated 433 MHz and
electromechanical or magnetic limit switches.
Reliability and safety characterize
to keep this operators superior quality .
►230V/50HZ◄
►Self-locking operators with electromechanical or magnetic limit switches
►230V/50HZ single-phase with encoder for position management and obstacles detection
► Speed adjustment and slowdown in opening and closing
► Soft start and soft stop for all versions
►Internal fan to ensure an intensive use
►110V/60HZ◄
►Self-locking operators with electromechanical or magnetic limit switches
►110V/60HZ single-phase with encoder for position management and obstacles detection
► Speed adjustment and slowdown in opening and closing
► Soft start and soft stop for all versions
►Internal fan to ensure an intensive use
Automatic sliding gate operators 1000kg
Model No | G10 |
Power supply | 220V+/-10% OR 110V， 50Hz-1 Phase |
Power of Motor | 500W |
Output Pinion | 19 Tooth Mod 4 |
Operating Speed | 12m/min |
Motor Thermal Protection | Electronic |
Maximum Gate Length | 20m |
IP Rating | 44 |
Shipping Mass of Unit | 16kg |
Working environment | -35℃~65 ℃ |
Gate operators accessories
Photocell Transmitter

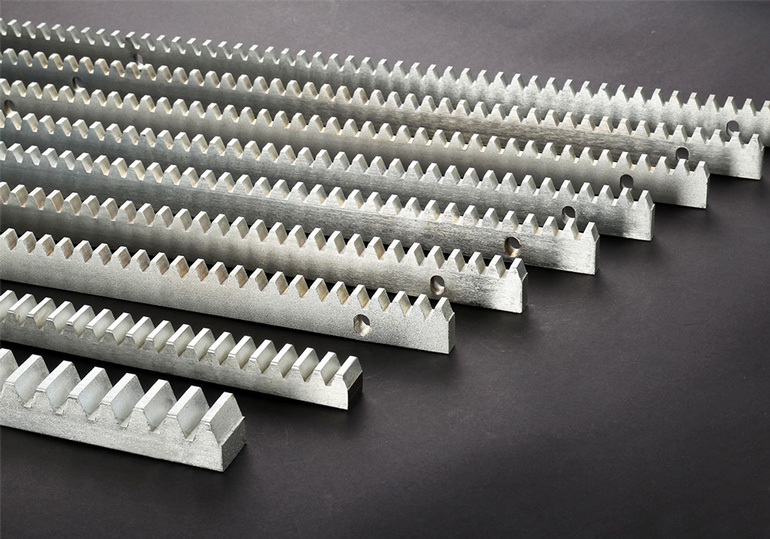

Flash lamp steel gear rack 1000*30*10MM/ 1000*30*12MM/1000*30*8MM
24V 220V 12V 1000*22*22MM 2000*22*22MM

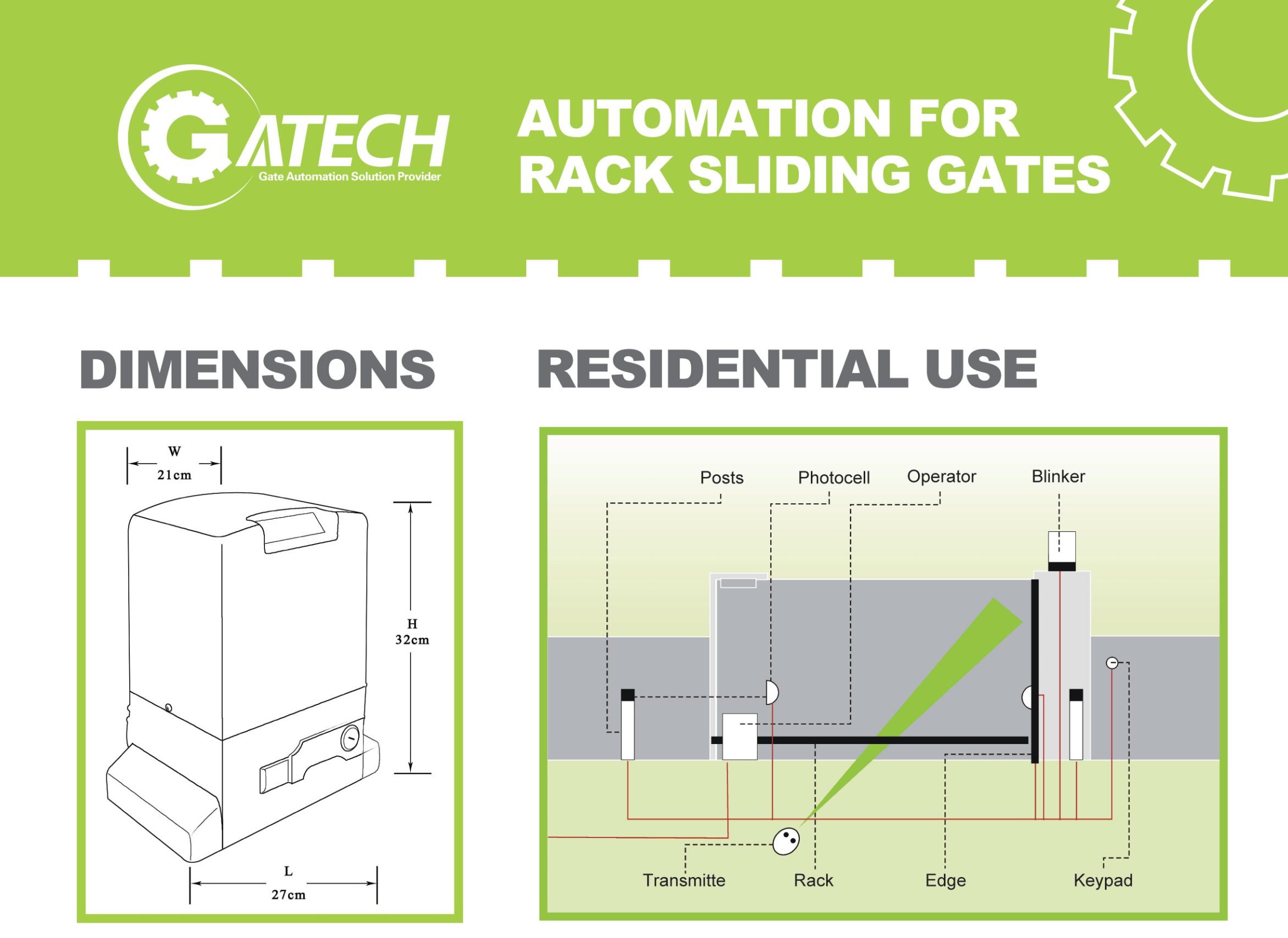

Typical installation
| 1 | ||
