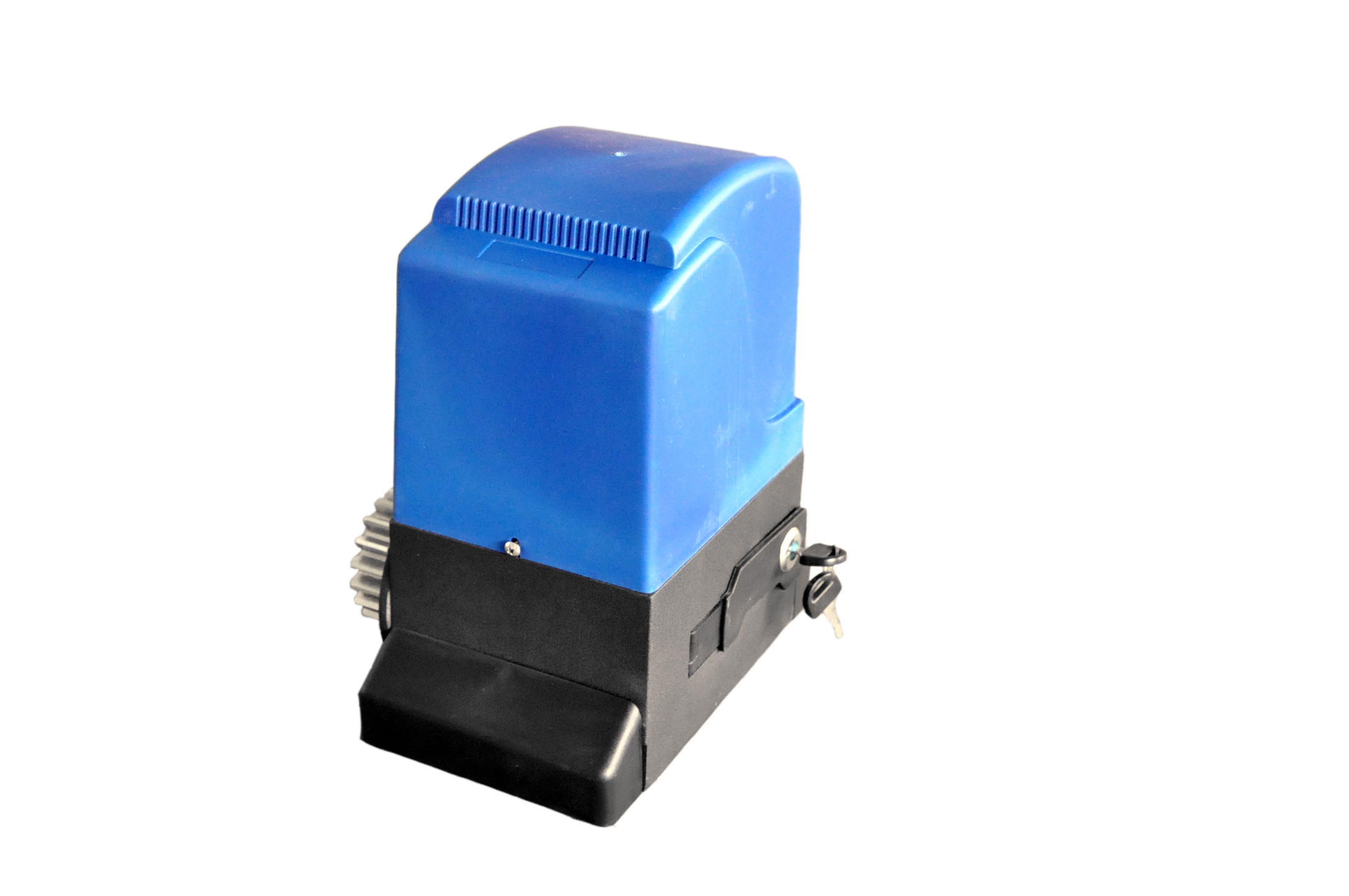

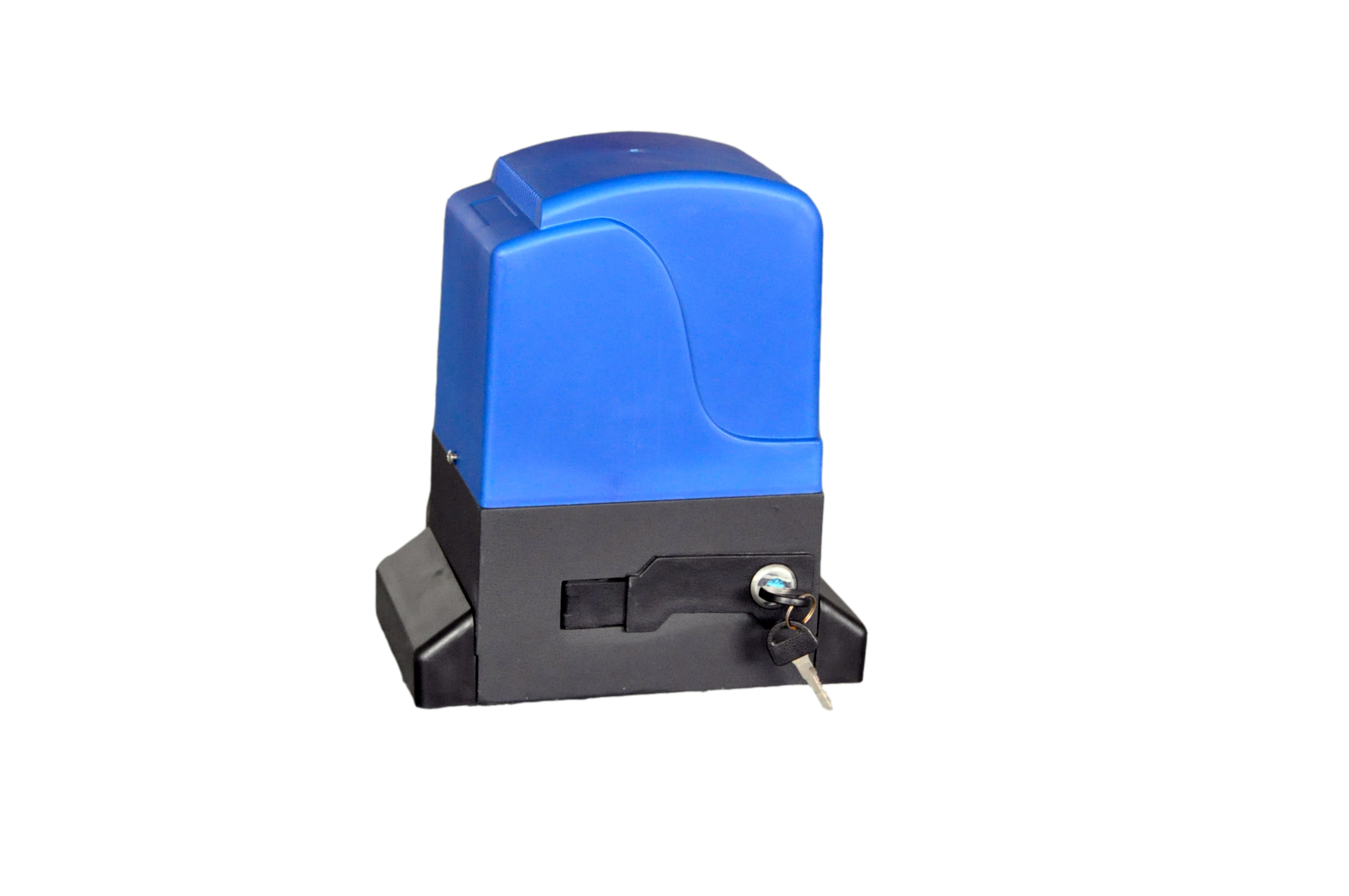

Blue G6
Residential sliding gate operators
Up to 600kg
GATECH operators supply Sliding gate motors up to 600Kg,
available in 230V ,110V. GATECH operators are provided

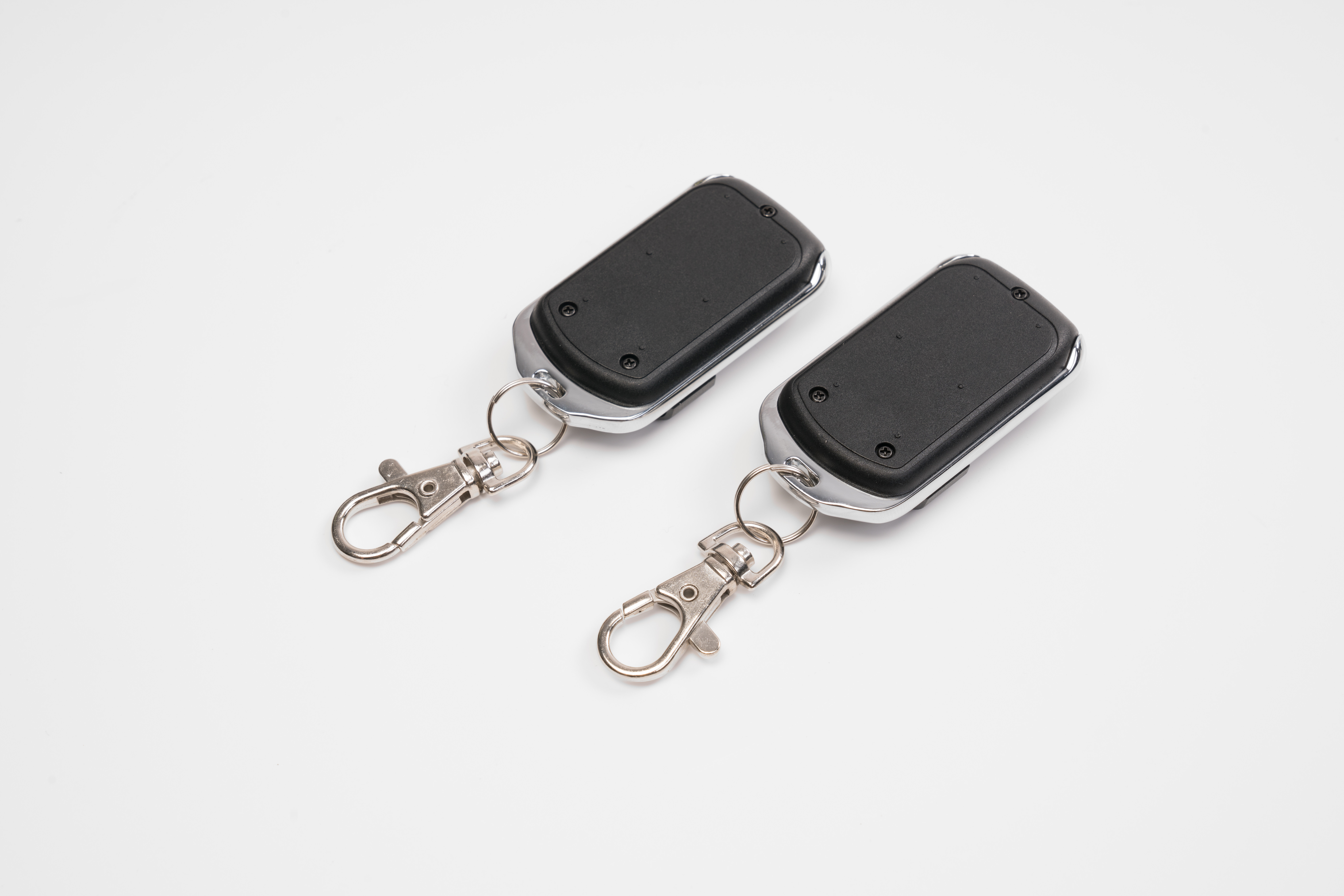

with built-in control panel with integrated 433 MHz and
electromechanical or magnetic limit switches.
Reliability and safety characterize to keep
this operators superior quality .
►230V/50HZ◄
►230V/50HZ single-phase with encoder for position management and obstacles detection
►Self-locking operators with electromechanical or magnetic limit switches
► Speed adjustment and slowdown in opening and closing
► Soft start and soft stop for all versions
►Internal fan to ensure an intensive use
►110V/60HZ◄
►110V/60HZ single-phase with encoder for position management and obstacles detection
►Self-locking operators with electromechanical or magnetic limit switches
► Speed adjustment and slowdown in opening and closing
► Soft start and soft stop for all versions
►Internal fan to ensure an intensive use
Automatic Sliding gate motors 600kg
Model No | G6 |
Power supply | 220V or 110V+/-10%， 50Hz-1 Phase |
Power of Motor | 250W |
Output Pinion | 19 Tooth Mod 4 |
Operating Speed | 12m/min |
Motor Thermal Protection | Electronic |
Maximum Gate Length | 20m |
IP Rating | 44 |
Shipping Mass of Unit | 15kg |
Working environment | -35℃~65 ℃ |
Gate operators accessories
Photocell Transmitter

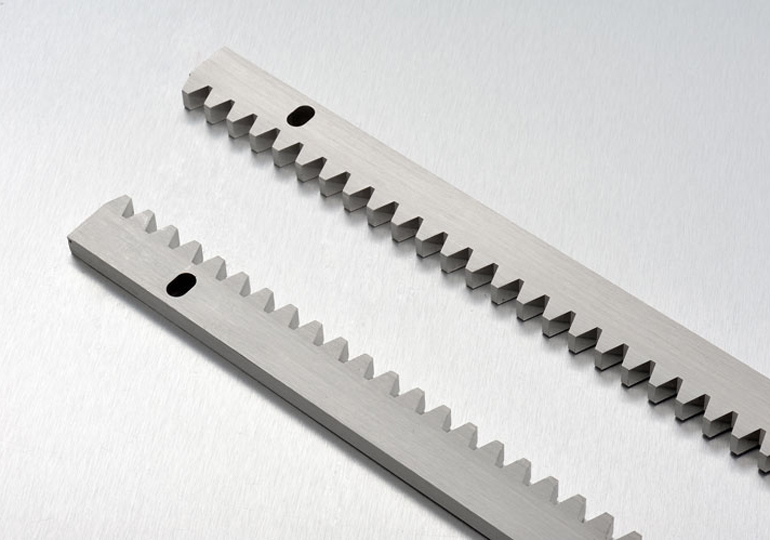

Flash lamp Gear rack

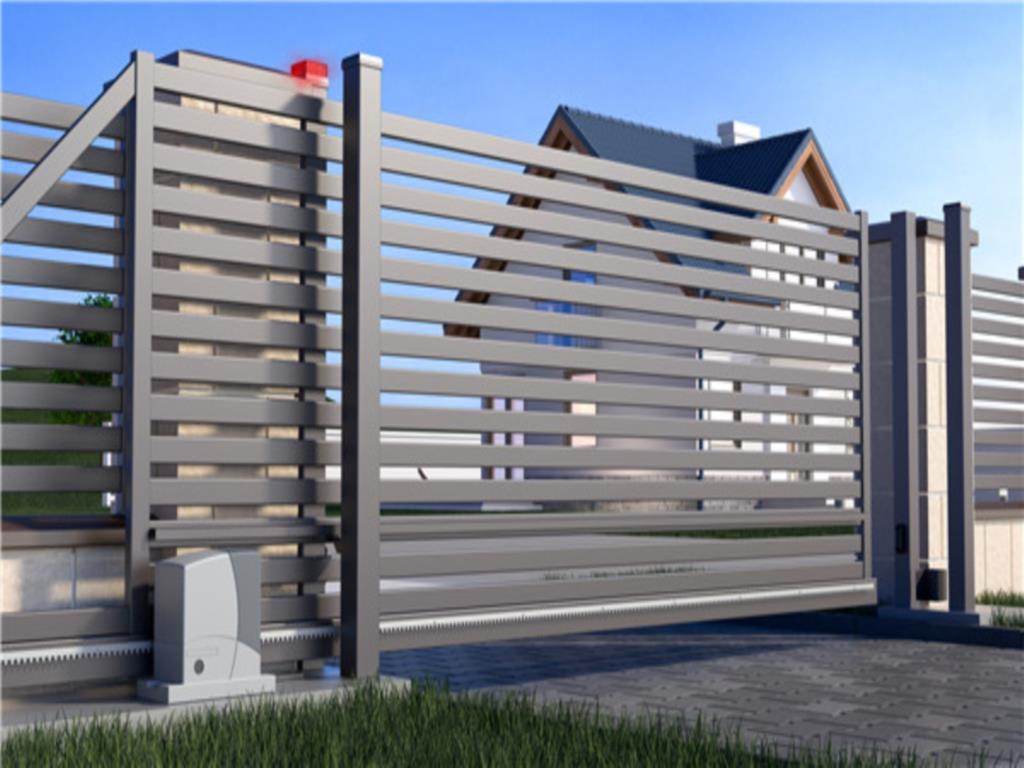

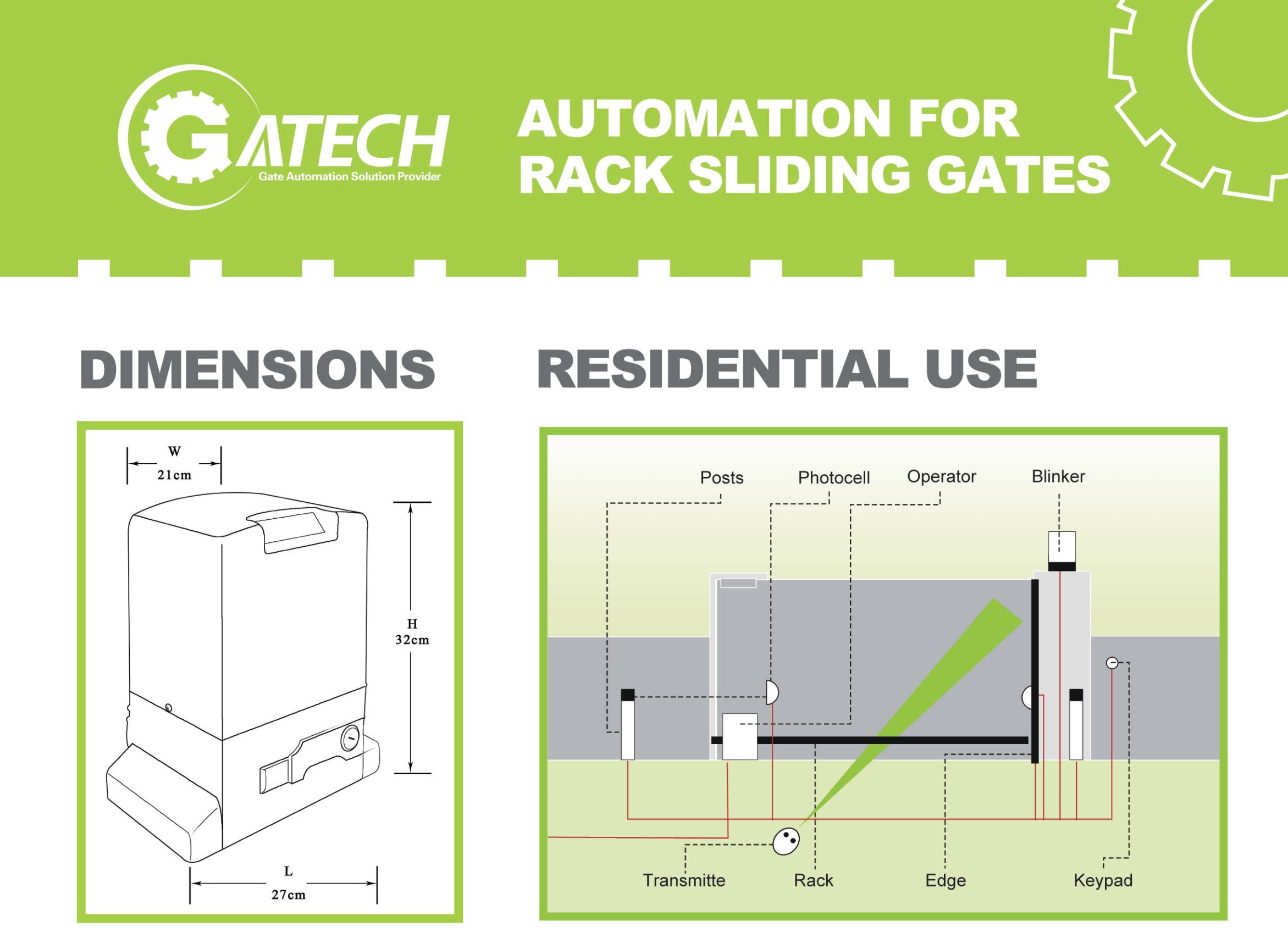

Typical installation
| 1 | ||
