GR6R
DC 24V Rolling shutter motors
Up to 600kg

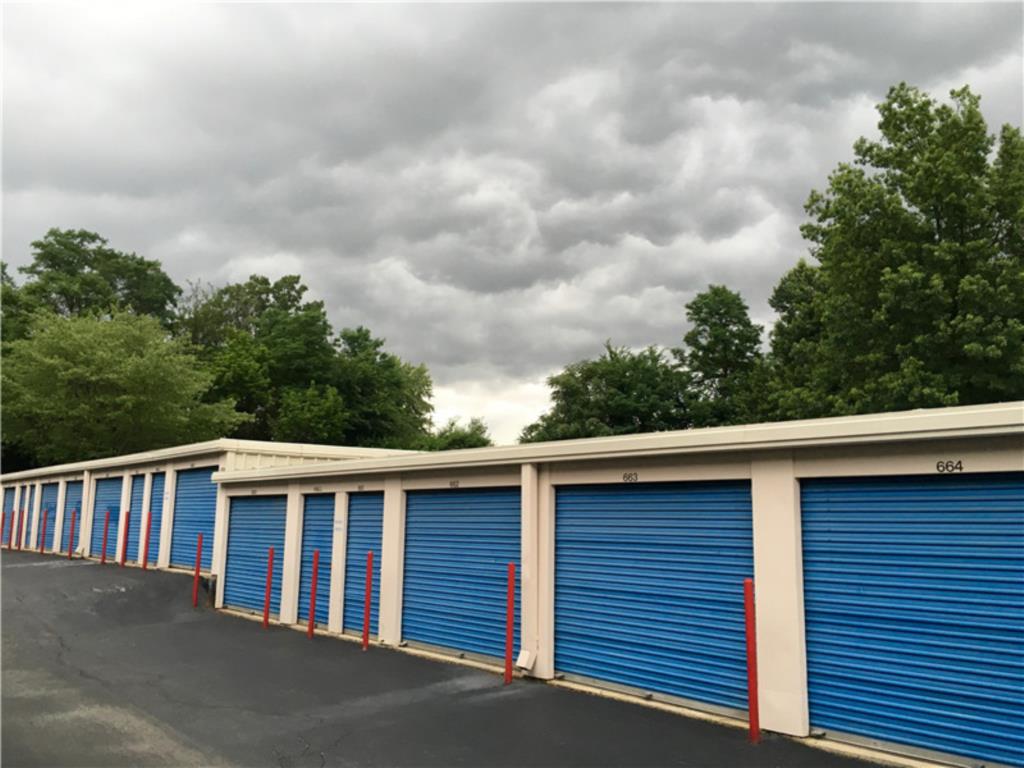

Rolling shutter motor are suitable for industrial, residence, shop and so on.
► Selected elements ensure safe working and reliability
► Simple pleasing design of structure
► Safety Device in of chain-break
► Good drive/size ratio
►Small oscillation
► Low noise
► Lightweight
►230V/50HZ◄
►Simple pleasing design of structure Good drive/size ratio
►Selected elements ensure safe working and reliability Low noise ,Small oscillation ,Small consumption
►Light weight ,small size, easy installed,long life,stable function. Safety Device in of chain-break
►Easy manual operation when power off Protect high current when the motor working

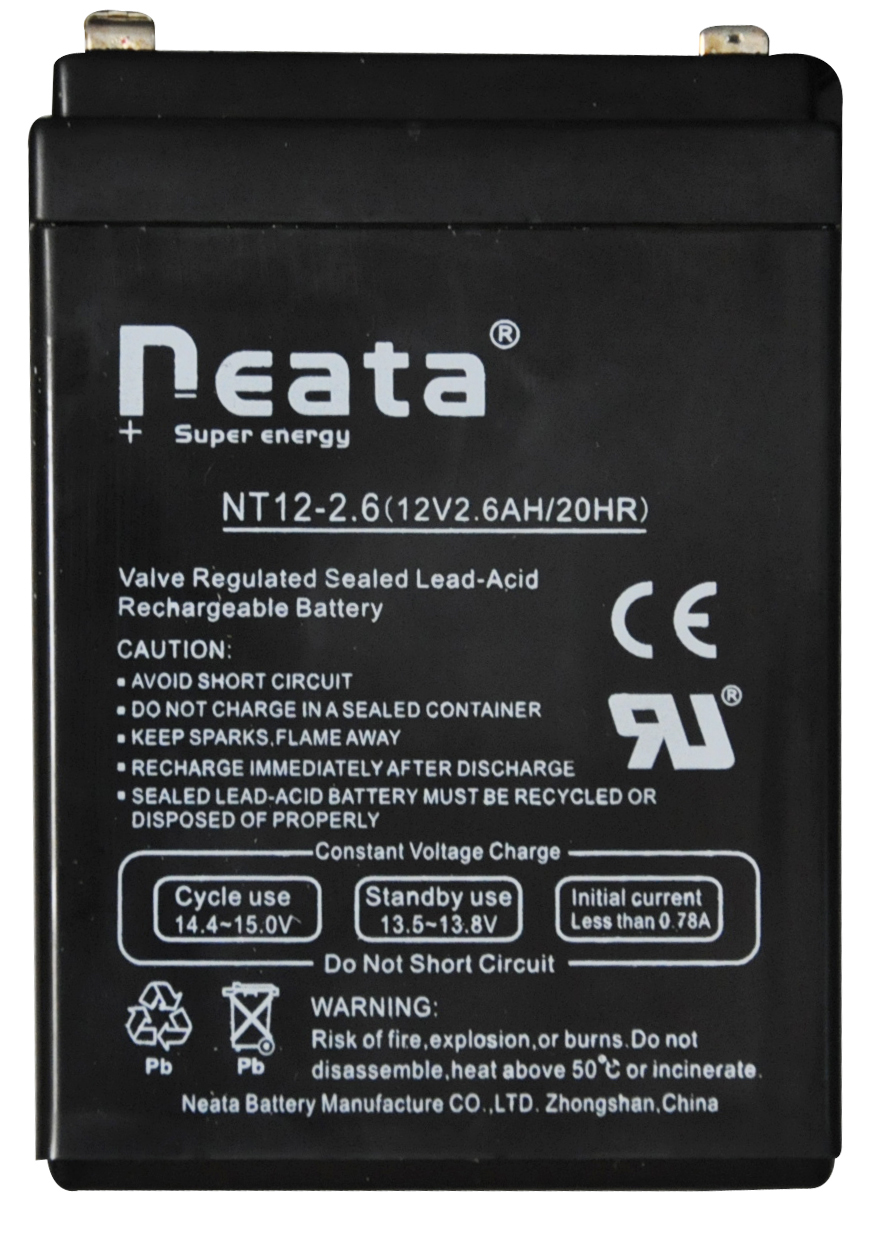

►Including remote control device, can long distance remote operation Including reserved power( two 12V/4.5Ah battery),
when the city electricity cut off, .can be automatically converted and supply power to ensure the motor can up and
down normally about 20 times
►Infrared protection device can be connected
►Motor drived by DC 24V, makes safer and more reassured
►110V/60HZ◄
►Simple pleasing design of structure Good drive/size ratio
►Selected elements ensure safe working and reliability Low noise ,Small oscillation ,Small consumption
►Light weight ,small size, easy installed,long life,stable function. Safety Device in of chain-break
►Easy manual operation when power off Protect high current when the motor working
►Including remote control device, can long distance remote operation Including reserved power( two 12V/4.5Ah battery), when
the city electricity cut off, .can be automatically converted and supply power to ensure the motor can up and down normally about 20 times
►Infrared protection device can be connected
►Motor drived by DC 24V, makes safer and more reassured
DC 24V Rolling shutter motors 600kg
Rated output torque | 412(N.M) |
Rated output speed | 3.8(r/min) |
Motor power | 220(w) |
Rated voltage | 220/50(V/HZ) |
Input voltage | 24(V) |
Rated current | 15(A) |
Durm dube outer diameter | 140(mm) |
Max lifting force | 600(kg.f) |
Max lifting height | 6(m) |
Rolling shutter motors accessories

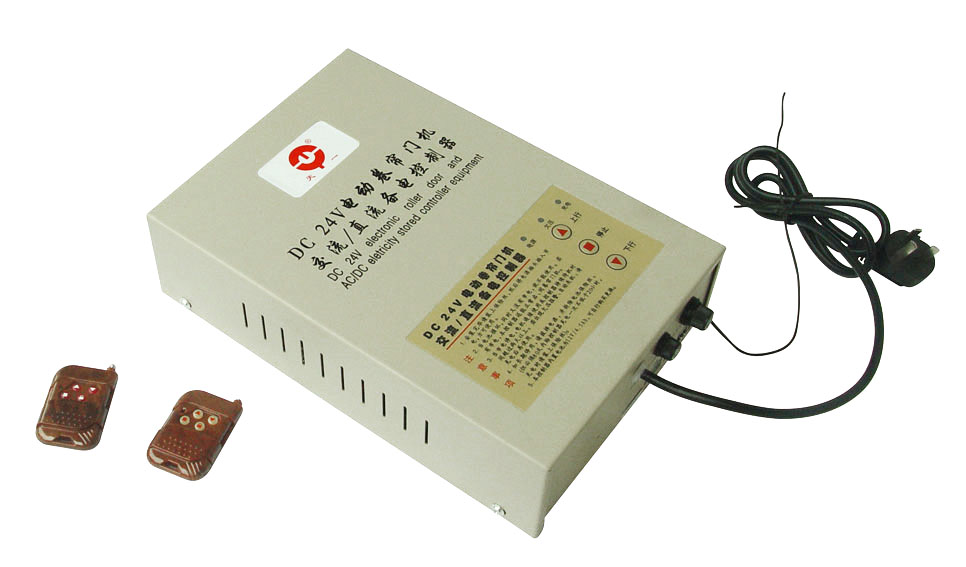

Remote controls and control box

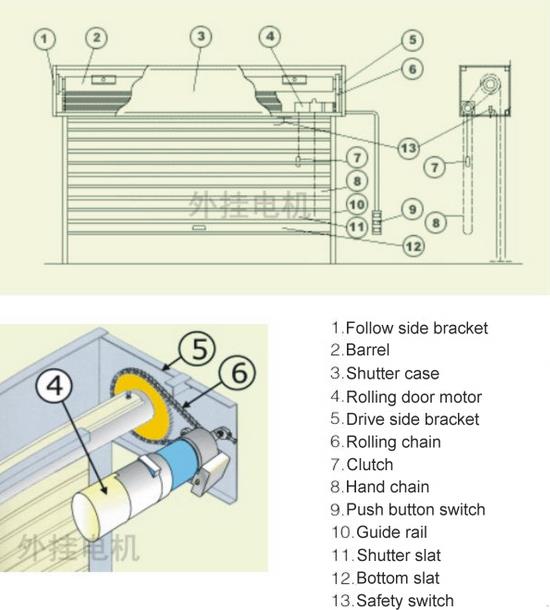

Typical installation
| 1 | ||
GR6R DC 24V Rolling shutter motors
