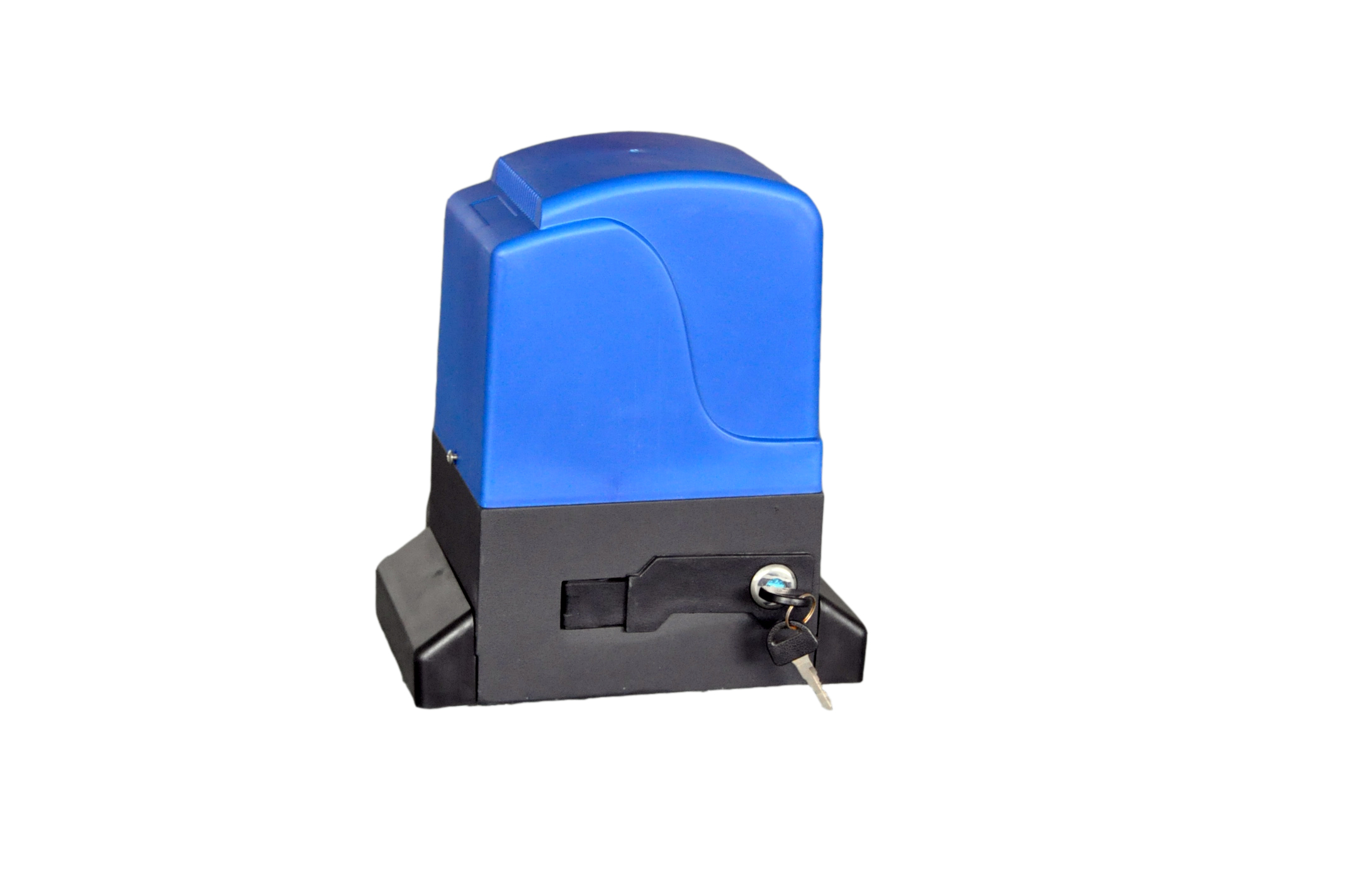

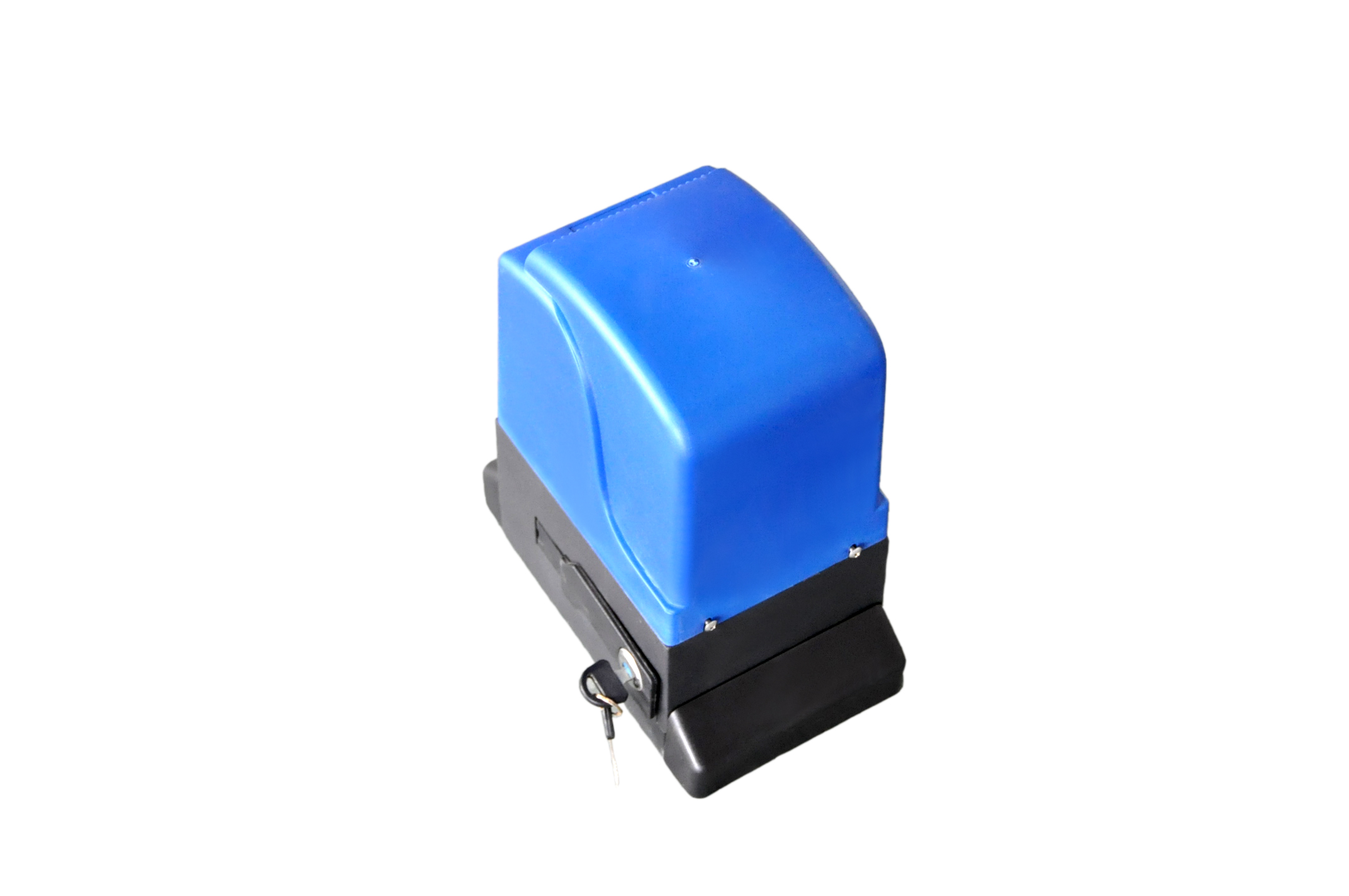

G15
Residential sliding gate operators
Up to 1500kg
GATECH operators supply Sliding gate motors up to 1500Kg,
available in 230V 110V. GATECH operators are provided with

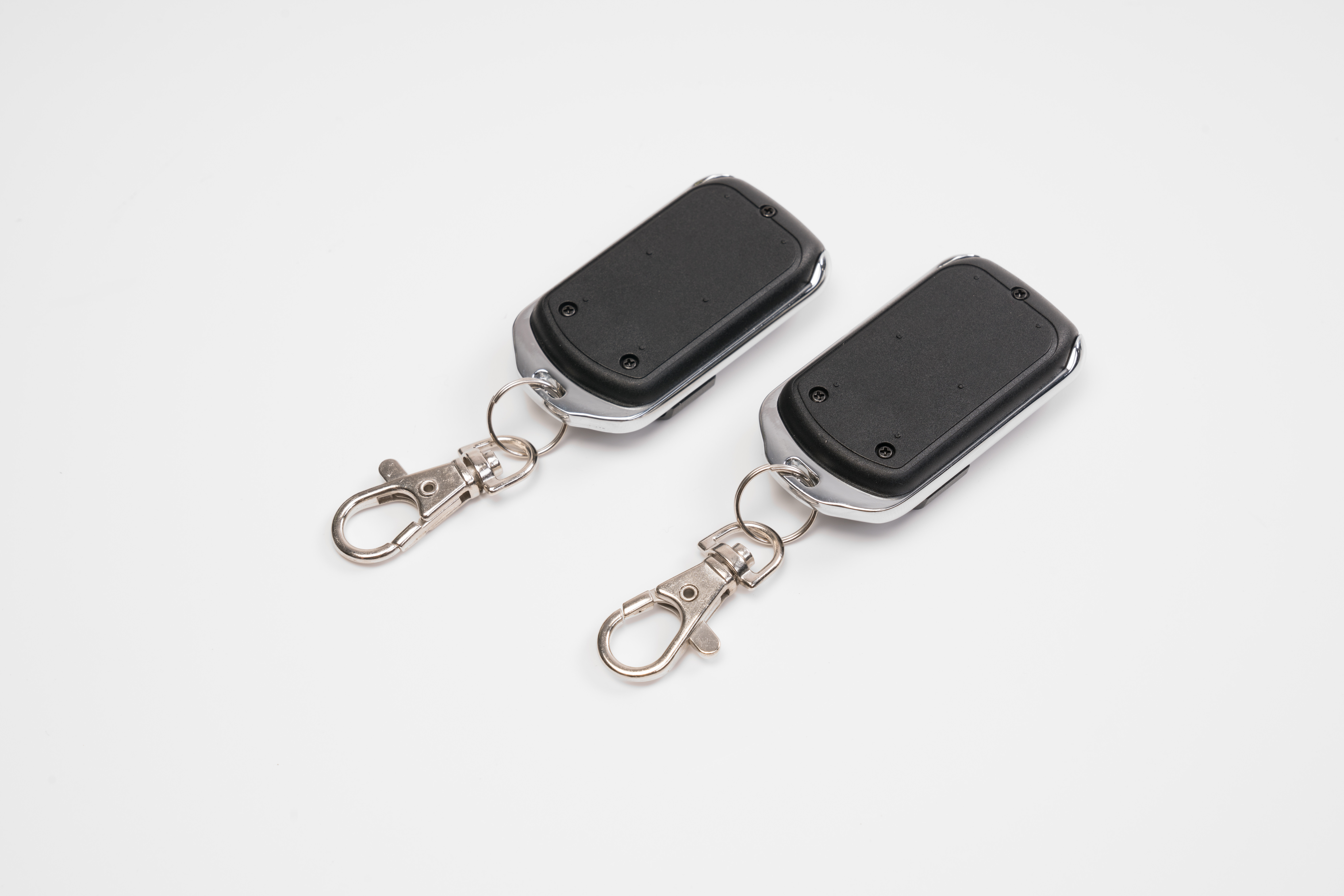

built-in control panel with integrated 433 MHz and
electromechanical or magnetic limit switches.
Reliability and safety characterize to keep
this operators superior quality .
►230V/50HZ◄
►230/50HZV single-phase with encoder for position management and obstacles detection
►Self-locking operators with electromechanical or magnetic limit switches
► Speed adjustment and slowdown in opening and closing
► Soft start and soft stop for all versions
►Internal fan to ensure an intensive use
►110V/60HZ◄
►110V/60HZ single-phase with encoder for position management and obstacles detection
►Self-locking operators with electromechanical or magnetic limit switches
► Speed adjustment and slowdown in opening and closing
► Soft start and soft stop for all versions
►Internal fan to ensure an intensive use
Automatic sliding gate operators 1500kg
Model No | G15 |
Power supply | 220V or 110V+/-10%， 50Hz-1 Phase |
Power of Motor | 500W |
Output Pinion | 19 Tooth Mod 4 |
Operating Speed | 12m/min |
Motor Thermal Protection | Electronic |
Maximum Gate Length | 20m |
IP Rating | 44 |
Shipping Mass of Unit | 17kg |
Working environment | -35℃~65 ℃ |
Gate operators accessories
Photocell Transmitter

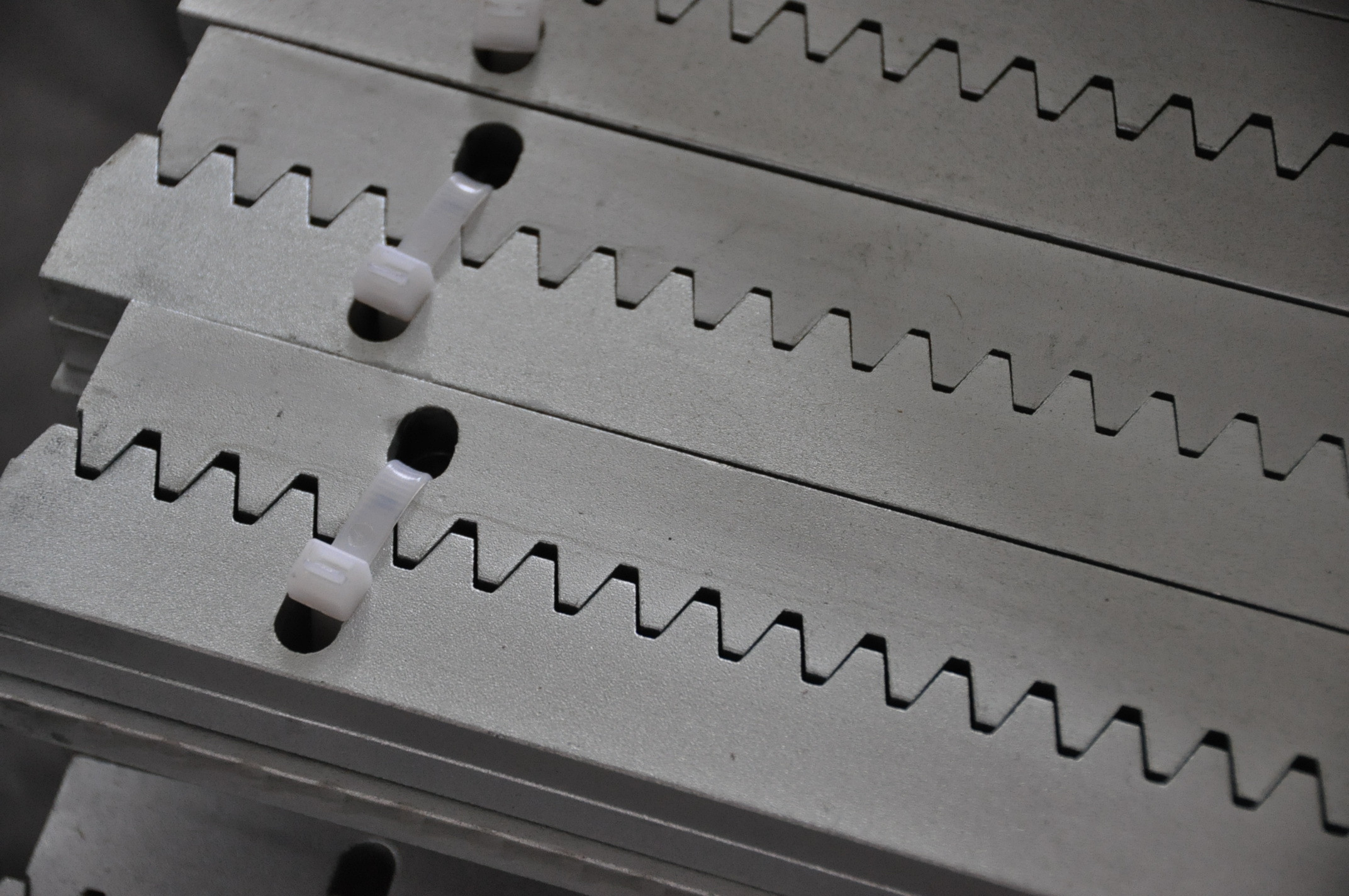

Flash lamp Gear rack 1000*30*8MM /1000*30*10MM/1000*30*12MM
220V /24V /12V 1000*22*22MM 2000*22*22MM

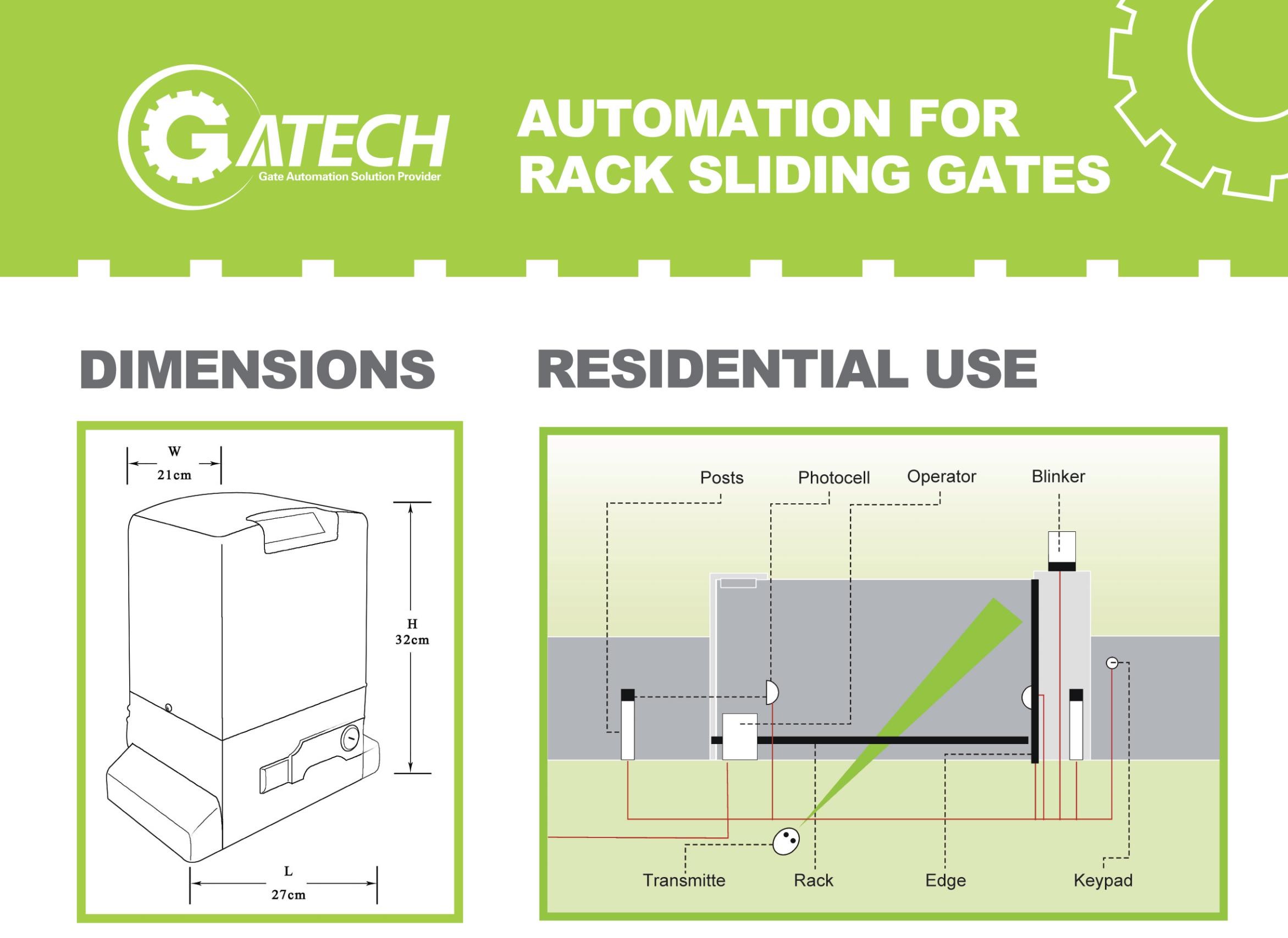

Typical installation
| 1 | ||
